LS162 is equipped with a 1/2.3 chip, featuring a focal length of 3.6mm, an aperture of F2.0, a field of view of 137 degrees. It is a 4K lens for drones and vehicle-mounted use with an M9 interface.

LS162规格书 SPECIFICATION
项目（Item）		规格参数（Parameter）
相对孔径 (F No.)		2.0
焦距(Focal-Length)		3.65mm
光学后焦 (Optical Back Focal Length)		5.39mm
机械后焦(Flange Back Focal Length）		2.79mm
最大像面大小（MAX Image circle)		Ø8.2
镜片构成（Lens structure)		6G
像素分辨率（Megapixel)		12MP
接口  (Mount )		M9*0.5
视场角(FOV )	Sensor	D(对角)°	H(水平)°	V(垂直)°
	1/2.3	137°	103°	76°
畸变（TV Distortion)		<-23%
相对亮度（Relative illumination)		>62%
最大主光线夹角（Chief Ray Angle)		<13°
光学总长（Total Length)		15.82mm
操作温度  (Operating temperature)		-20℃~+70℃
IP防护等级：0		Tavg>=88%  @420-600nm	T=50%  @650±10nm	Tavg<=5%  @700-1050nm

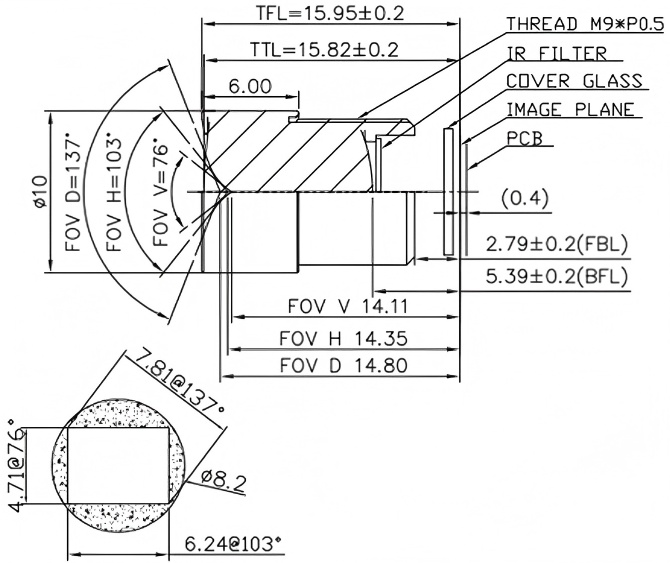

尺寸（Size）
